User Management Module Documentation

Overview

The User Management module is responsible for handling all operations related to user accounts within the system. This includes user registration, authentication, role-based access control, and account settings.

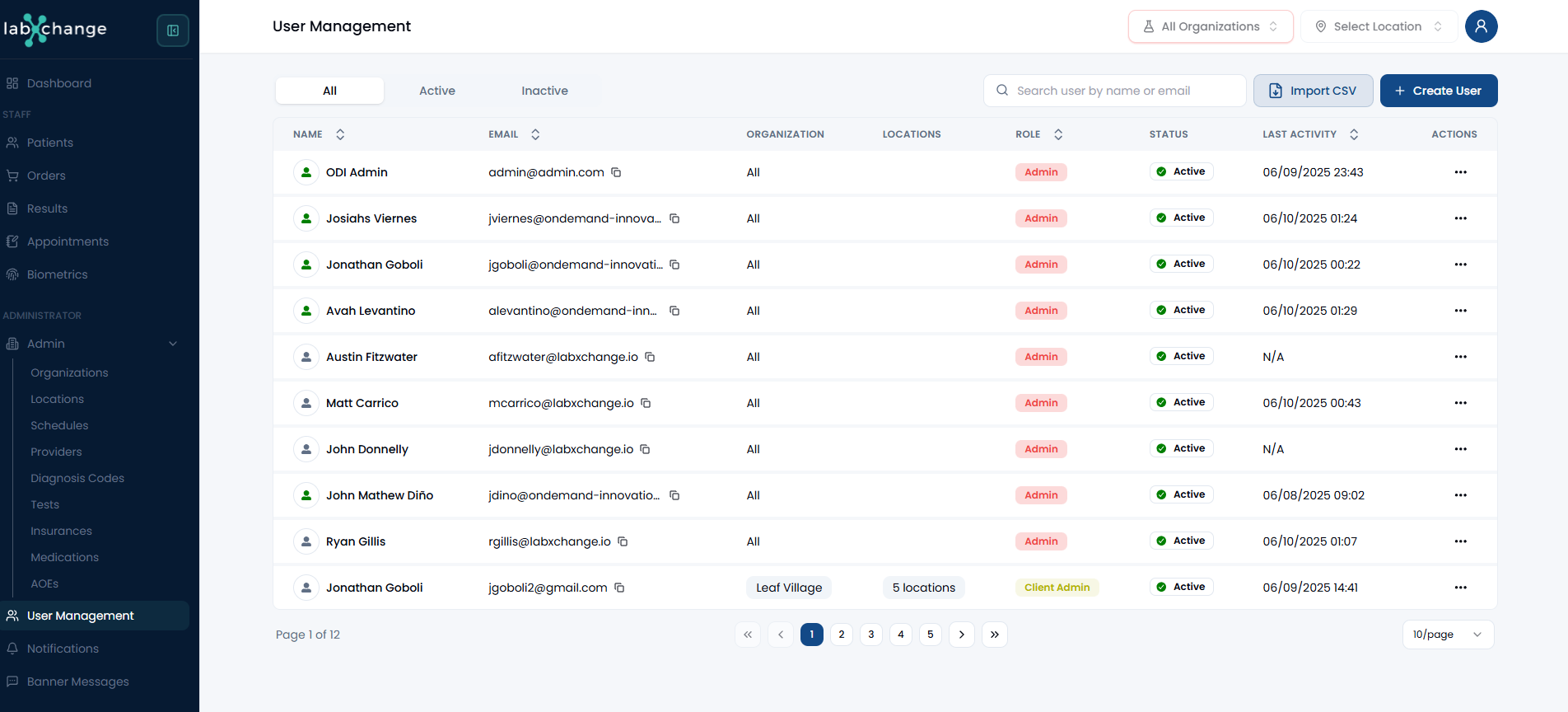

Alt text

User Roles

  • Admin
    This role oversees the entire system and has permission to access all modules and data within the system.

  • Client Admin
    Also known as the Laboratory Admin, this role oversees, manages, and handles data within the assigned organization.

  • Staff
    Staff users handle patient transactions such as registration, ordering, and appointments within the assigned organization and locations.

  • Providers
    Provider users have the same privileges as staff but are limited to their assigned patients within the organization.

Features

I. User Registration and Management

Allows creation and editing of users within the system.

User Creation
  1. Navigate to "User Management" tab
  2. Click "Create User" button
  3. Fill in the required information from the form.
  4. Click "Create User" button to create user

Scenario 1: Duplicate Email

  1. User enters existing email within the same Organization
  2. System returns a error toaster saying "Error creating user : user with this email already exist"
  3. User remain in the creation form modal to recheck

Scenario 2: Invalid or Missing Input Format

  1. User enters Invalid data or Miss a required field (e.g email)
  2. System returns an input validation for that specific field "Invalid email address"
  3. User remain in the creation form modal to recheck
User Update
  1. Navigate to "User Management" tab
  2. Click "..." icon in the "Actions" column
  3. Click "Edit" button
  4. Edit the desired information from the form.
  5. Click "Update User" button to save changes

Scenario: Invalid Input Format

  1. User enters Invalid data field (e.g email)
  2. System returns an input validation for that specific field "Invalid email address"
  3. User remain in the creation form modal to recheck

II. User Deactivation/Activation

Supports deactivation or activation of user accounts.

User Deactivation/Activation
  1. Navigate to "User Management" tab
  2. Click "..." icon in the "Actions" column of the desired row
  3. Click "Deactivate" or "Activate" button
  4. Click "Update User" button to save changes

III. User Archive

Supports soft-deletion(archive) of User accounts

User Archive
  1. Navigate to "User Management" tab
  2. Click "..." icon in the "Actions" column of the desired row
  3. Click "Archive" button
  4. Click "Update User" button to save changes

  • User Authentication
    Provides secure login and logout functionality using session- or token-based authentication.

  • Password Management
    Includes password hashing, email-based password reset, and password strength validation.

  • Role-Based Access Control (RBAC)
    Assigns roles (e.g., Admin, Client Admin, Staff, and Providers) to manage permissions.

  • Table Filtering
    Supports filtering by status and keyword search.

  • Two Factor Authentication
    Supports two-factor authentication via email for enhanced login security.

  • Mass User Import
    Enables bulk user creation through mass import.

API Endpoints

Below is a list of commonly used endpoints. This may vary based on the backend framework (e.g., Express, Django, Laravel).

Authentication

Method Endpoint Description
POST /api/auth/login Authenticates a user
POST /api/auth/logout Logs out the user
POST /api/auth/password/change/ Change Password
POST /api/auth/password/reset/ Reset Password
POST /api/auth/verify-2fa/", { user, code } 2 Factor Authentication

User Management

Method Endpoint Description
GET /api/users List all users (admin only).
POST /api/user/archive/:id/ Archive Users
GET /api/users/{id} Retrieve a specific user.
PUT /api/users/{id} Update user info.
DELETE /api/users/{id} Deactivate or delete a user.
Filters
GET api/users/search/?search={name/email} Search Users
GET /api/users/active/ List of Active Users

Data Model

Authentication

{
  "email": "string",
  "password": "string"
}

User

{
  "id": "uuid",
  "email": "string",
  "first_name": "string",
  "last_name": "string",
  "is_online": "boolean",
  "last_activity": "datetime",
  "is_active": "boolean",
  "is_deleted": "boolean",
  "role": "admin | client admin | staff | ptorviders",
  "phone_number": "string",
  "provider_signature": "boolean",
  "provider_signature_url": "string",
  "npi": "string",
  "primary_practice_address": "string",
  "first_time_login": "boolean",
  "organization": "string",
  "location": "array",
  "provider": "array",
  "physician_only_results": "boolean",
  "email_2fa_enabled": "boolean",
  "title": "string"
}
